Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler

Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler

    • Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler
    • Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler
    • Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler
    • Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler
  • Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler

    Ürün ayrıntıları:

    Place of Origin: Zhangjiagang,Jiangsu,China
    Marka adı: HD Boiler
    Sertifika: ISO9001/SGS/TUV/ASME/EN
    Model Number: Header

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 1Set
    Fiyat: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
    Supply Ability: 100 Tons/Month
    Şimdi başvurun
    Detaylı ürün tanımı
    Condition: New Structure: Fire/Water Tube
    Fuel: Coal/Gas/Coal-fired/Water heat Type: Boiler Part
    Pressure: Low/High Pressure Range of Applications: Industrial/Power Station
    Specification: Customized Manufacturing Level: A
    Surface Treatment: Painted HS Code: 3215960855

    SA210A1 stainless steel thermal oil boiler header for Economical Industrial Boiler Pressure Parts



    Product Description

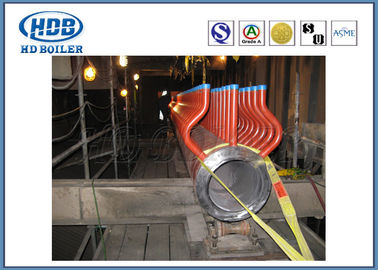

    Headers form an important part of all types of boilers. Steam from the generating tubes is collected in headers which are therefore always under pressure. This pressure may vary from 300 psi to 2000 psi. Since headers are always under pressure, the utmost care is taken by us while fabricating them. Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB. The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the header.



    Process


    The critical point to manufacture the end cover of steam trap boiler economizer header is the welding process. We adopt the advanced manufacture process, the complete large sized device and mature technology, especially the welding of the end cover with the boiler part header, we adopt the auto submerged welding, this welding method exists the high manufacture efficiency, good quality, the artistic welding appearance, safe and reliable operation.



    Technical parameters of customer design boiler pressure parts header for CFB boiler



    Diameter(OD) ¢76mm~914mm
    Length(Max) 23000mm
    Temperature(℃) 300~1500



    Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler



    Material


    1. Carbon steel:20G,SA-106B,SA-106C,etc.

    2. Low-alloy thermal resistant steel:15CrMoG,12Cr1MoVG,SA-335P12,SA335-P22,etc.

    3. Middle-alloy thermal resistant steel:SA-335P91,etc.

    4. Special material(ultra-supercritical):SA-335P122,SA-335P92,etc.



    Certifications


    Stainless Steel Thermal Oil Boiler Header For Industrial High Pressure Boiler



    Competitive Advantage


    Quality control and management to the whole produce process, including ingot smelting, hot-rolling, heat treatment, machining and strictly final inspection prior to delivery.
    Excellent product quality and service, competitive price, “in-time” delivery
