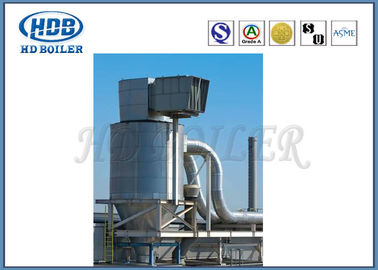

Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry

Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry

    • Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry
    • Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry
    • Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry
    • Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry
  • Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry

    Ürün ayrıntıları:

    Place of Origin: China
    Marka adı: HD Boiler
    Sertifika: ISO9001,ASME,Grade A,SGS,EN
    Model Number: Cyclone separator

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 1Set
    Fiyat: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 set/sets per Month
    Şimdi başvurun
    Detaylı ürün tanımı
    Condition: New Structure: Fire/Water Tube
    Type: Fabric dust collector Pressure: 420-1400pa
    Minimum particle size: 10 micron Specification: Customized
    Manufacturing Level: A Surface Treatment: Painted
    Equipment resistance: 1200pa Efficiency: 99.9%,70-90%

    Widely used high efficient single Cyclone Separator or Dust Collector for Boiler



    Product Description


    Cyclone Collector are often employed as an Initial Stage Collector to lighten heavy dusts loads before being sent to a Primary Stage Fabric Collector. By removing coarse particles from the gas stream, and allowing later stage Fabric Collectors to solely remove finer particles, these collectors increase the efficiency and service life of Fabric Collectors (Baghouses) and their Filters. Thus protecting your larger and most costly investment from unnecessary wear and tear.Cyclone Separator or Dust Collector  for Boiler



    Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry



    Work Principle


    As the dirty air enters the cyclone dust collector, it is forced into a swirling movement. This results in a centrifugal force acting on the dust particles suspended in the air stream. The particles, denser than the air, are forced to move outwards, towards the cyclone dust collector wall. They then fall downwards, towards the dust exit. The clean air is eventually directed towards the centre of the cyclone and leaves through the gas exit.

    Cyclone dust collector efficiency is a function of the physical parameters of the particles and the design parameters of the unit. Cyclone efficiency increases with:



    • Coarse particle size distribution
    • Higher products specific gravity
    • Lower gas density
    • Smaller outlet diameter. An increase in pressure drop also results.



    Characteristic


    The Cyclone dust collector hasn't any moving parts. It's conenient for manufacture and management. With the same air volume, The cyclone collector is more smaller size, and the price is more cheaper. As the second dedusting and matched with bag filter, it can be installed vertically, also can be installed in a horizontal. So, it is easy to install and applicate. The cyclone collector efficiency of resistance is not affected for many sets of cylcone dollector in multiple using when processing the large dust gas air volume.



    Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry

    Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry



    Heat Resistant Industrial Cyclone Separator Equipment For Boiler / Chemical Industry



    Company Introduction


    HD Boiler offers a best in class facility,including:

    • Fabrication area of 200,000 square meters
    • 150 Engineers
    • 600 Coded welders
    • 60 Licensed Inspectors (including NDT level-lll instructors)
    • Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
    • ISO 90001:2008 Quality System
    • ASME Certificate of Utility Boiler
    • ASMES’ , ‘U’ and NB stamp authorization
