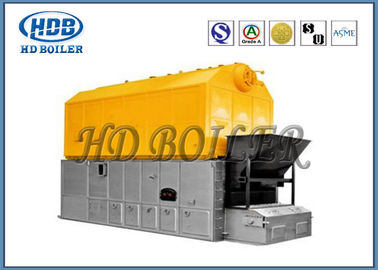

Double Chain Coal Fired Hot Water Boiler , High Efficiency Steam Boiler SZL Type

Double Chain Coal Fired Hot Water Boiler , High Efficiency Steam Boiler SZL Type

    • Double Chain Coal Fired Hot Water Boiler , High Efficiency Steam Boiler SZL Type
    • Double Chain Coal Fired Hot Water Boiler , High Efficiency Steam Boiler SZL Type
    • Double Chain Coal Fired Hot Water Boiler , High Efficiency Steam Boiler SZL Type
  • Double Chain Coal Fired Hot Water Boiler , High Efficiency Steam Boiler SZL Type

    Ürün ayrıntıları:

    Place of Origin: China
    Marka adı: HD BOILER
    Sertifika: ISO9001 , ASME , GradeA , SGS , EN ,TUV
    Model Number: SZL

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 1 set
    Fiyat: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 50-100days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets / Per year
    Şimdi başvurun
    Detaylı ürün tanımı
    Condition: New Structure: Fire / Water tube
    Fuel Available: Coal Manufacturing: A
    Surface Treat: Painted Operation: Automatic
    Place Style: Horizontal HS Code: 3215960855

    Quick assembling SZL type double drum coal fast loading pipe steam with hot water boiler

    Product Description

          Structural features

    • Double chain great boiler drum water pipe type, drum longitudinal layout of ou and down the center of boiler, water wall tube of the chamber radiation heating surface, between the drum and the water drum in bundles of convection heating surface.
    • Chain grate points warehouse into the wind,the wind chamber air volume adjustment indpendently, grate stepless speed regulation.
    • Compact structure,cover an area of an area small, infrastructure investment.
    • Assembly degree is high, short installation period,less installation cost.


          Performance advantage
          1 The sealing performance is good
            Furnace chamber adopts close water-cooling tube structure

          2 The output is sufficient
             By plane layout reasonable fully,boiler heat booster

          3 High thermal efficiency
             Radiation heat transfer section adopts the close water cooled tube structure,the convective heat                transfer was more than S return heat transfer.

          4  High efficiency
             The boiler is made of high quality thermal insulation material and special construction craft,small  heat loss.Great furnace arch design,special grate bin into the wind,the wind room independent  adjust air flow,coal burning evenly, wide adaptability of coal.

         5 Safety a high degree of automation
             boiler adopts remote and clos monitoring,automatic control and monitoring instrument is complete,
             safe and reliable,easy to operate.


    Parameter

    ModelSZL6-1.25-AII
    SZL6-1.6-AII
    SZL6-2.5-AII
    SZL8-1.25-AII
    SZL8-1.6-AII
    SZL8-2.5-AII
    SZL10-1.25-AII
    SZL10-1.6-AII
    SZL10-2.5-AII
    SZL15-1.25-AII
    SZL15-1.6-AIISZL15-2.5-AII

    Rated heating efficiency(MW)
    681015
    Rated working pressure(MPa)1.25/1.6/2.51.25/1.6/2.51.25/1.6/2.51.25/1.6/2.5

    Rated steam temperature
    193/204/226193/204/226193/204/226193/204/226
    Water-supply temperature60606060
    heating areaBoiler(m)156197.4235.6335

    Coal economizer(m)
    87.2157174.4354

    Air preheater (m)


    Effective area of grate(m)
    7.810.111.817.3

    Water volume(m³)
    7.39.612.415.3

    Design efficiency(%)
    80808080
    Applicable fuelSoft coal Class II and III
    Maximum size of shipping part(m)6.1×3.1×3.56.8×3.4×3.57.6×3.4×3.59.6×3.4×3.54
    Maximum weight of shipping part(t)25293142

    Overall size of installation(m)
    9.5×5.5×6.29.5×5.5×6.29.8×5.7×6.210.9×5.7×6.7

    Draught fan
    GY6-1 30kwGY10-1 45kwGY10-15 55kwY5-47 12D 75kw
    Blower fanT4-72 5A 11kwGG10-1 15kwGG10-1 15kwG4-73 9D 30kw
    Speed governorGL-10P 0.75kwGL-16P 1.1kwGL-16P 1.1kwGL-20P/II 1.5kw



    Company Information


    HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
